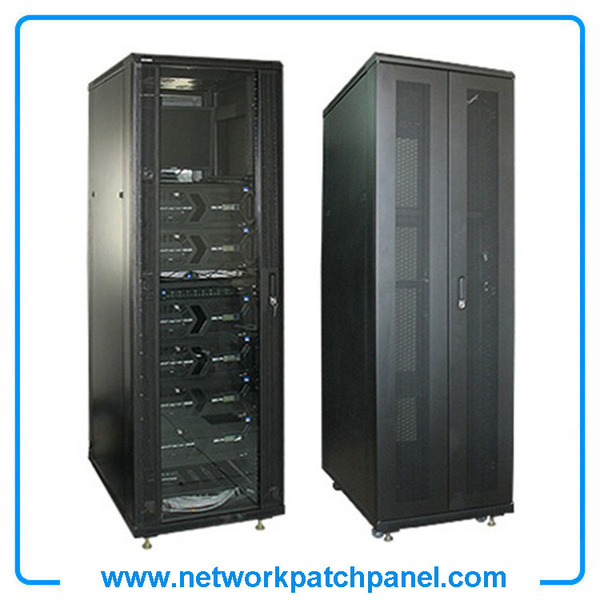

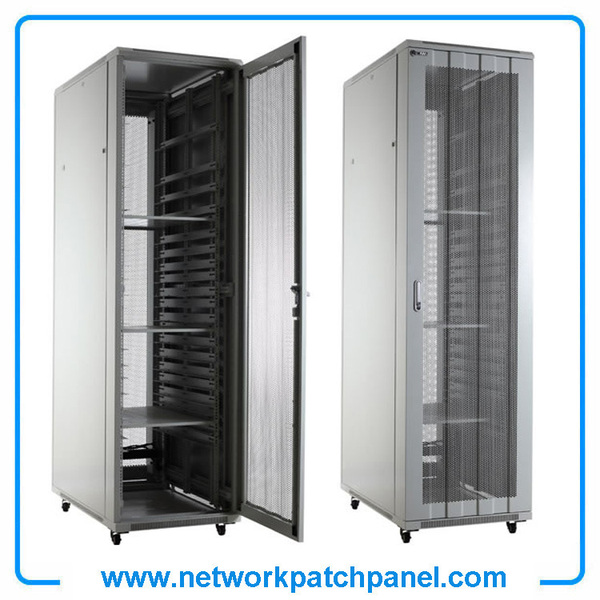

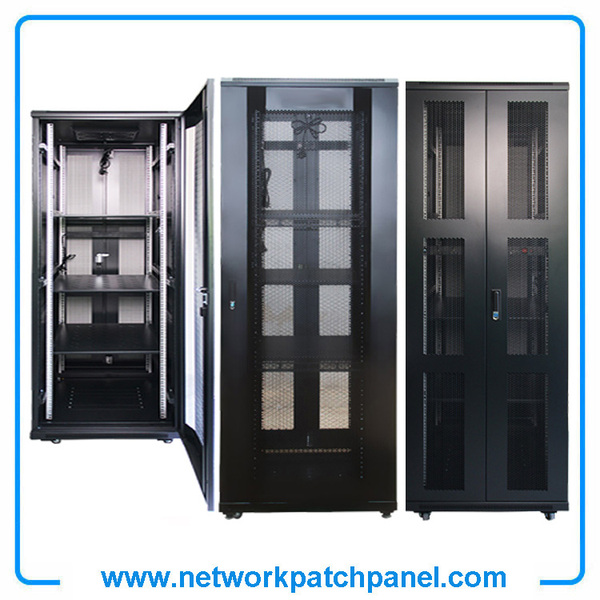

Customized Network Server Cabinet Rack Enclosures 19 Inch 12U 16U 18U 24U 42U 47U Network Cabinet
Details

Customized Network Server Cabinet Rack Enclosures 19 Inch 12U 16U 18U 24U 32U 37U 42U 47U Network Cabinet

China Network Cabinet Manufacturer, Factory and Supplier.

Network Cabinets support large, modular network switches by providing additional space for cable management and side-to-side airflow solutions and are generally used for the storage of routers, patch panels, switches and a wide variety of networking equipment as well as networking accessories.

Customized Network Server Cabinet Enclosures 19 Inch 12U 16U 18U 24U 32U 37U 42U 47U Network CabinetCustomized Network Server Cabinet Enclosures 19 Inch 12U 16U 18U 24U 32U 37U 42U 47U Network CabinetCustomized Network Server Cabinet Enclosures 19 Inch 12U 16U 18U 24U 32U 37U 42U 47U Network CabinetCustomized Network Server Cabinet Enclosures 19 Inch 12U 16U 18U 24U 32U 37U 42U 47U Network Cabinet

Features:

1. The network cabinet has a novel structure, and its curved front mesh door and flat rear mesh door help to

achieve a high free air ratio (over 65%), which is meaningful for heat dissipation.

2. Cooling fans are fixed on the top cover of our data cabinet for better heat release, and there are adjustable

cable access holes on the roof and base.

3. The side panels are removable, and they can be equipped with locks if requested.

4. Jacking feet and castors are installed at the bottom to realize easy movement, fixation and leveling adjustment.

5. This 19-inch server rack has a welded frame, and it can be disassembled into different parts to facilitate

shipping.



Description:


1. Welded frame, can be flat packing, easy to transfer,

2. High density vented or perforated front&rear door for optimal airflow, can be turned over 180 degree;

3. Removeable front/rear door and side panels, easy to install and unistall;

4. Optional two cool fans and four cool fans;

5. Bottom with cable entry, optional cover to close;

6. Wire path on the top and bottom can be closed, and wire holed dimensions can be changed as requested;

7. Wire groove with cover plus on the two sides in the front;

8. Groove cover can be install and unistall quickly and easily to maintain;

9. Interior space can reach 740mm max;

10. Install caster and support feet at the same time;

11. Compatible with 19" standard equipments, metric standard equipments.

12.Technical Data of Netwrok Cabinet:

Standard: ANS/EIA RS-310-D, IEC 297-2, DIN 41491 part 1, DIN41491 part 7, ETSI

Compatible with 19" international standardand metrical standard & ETSI standard.

Raw material: SPCC Cold rolled steel

Steel thickness: mounting profile: 2.0mm, mounting angle:1.5mm others: 1.2mm

Door: tempered glass or mesh steel

Static Loading Capacity: 800kg (with jacking feet)

Protection class: IP20

Surface finish: Degreasing, pickling, parkerising, powder coating,phosphoric,

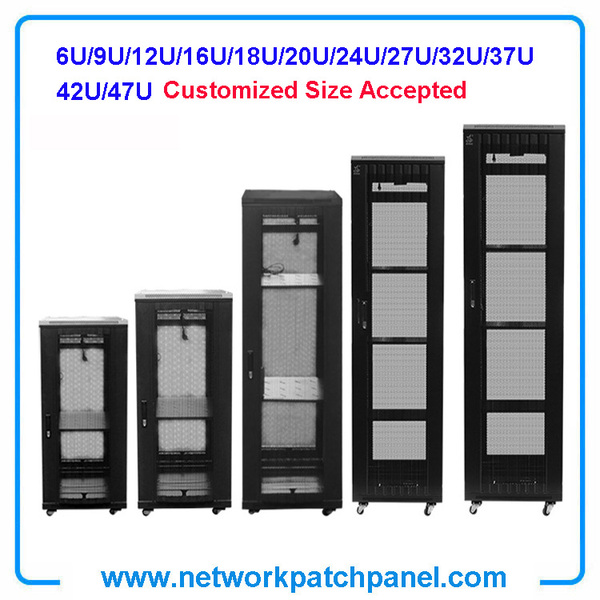

Height: 6U,9U,12U,16U18U, 20U, 22U, 24U, 27U, 32U, 37U, 42U ,47U

Width: 600mm, 800mm

Depth: 600mm, 800mm, 900mm, 960mm,1000mm, 1200mm


Advantages:

1. Exquisite desgn with precise craftsmanship:

2. Welded steel frame for front and back part, which can be flat packing,easy to transfer:

3. Tempered glass front door with over 180 turning degree:arc shaped vented front door border:

4. Steel rear door with little round lock,optional other lock:

5. Removable side panel with latch, easy to install(optional lock):

6. Adjustable feet and castors are available simultaneously:

7. Cable entry on the top, adjustable cable entrance at the bottom with panel:

8. Advanced handle locks for front door, optional other lock:

9. S-shaped mounting profile, free to move forward and back:

10. Efficient baying kit of cabinet, earthing kit:

11. Optional plinth to fix cabineton floor:under base cable entry:

12. Various optional accessories for common using:

13. Unassembled packing,about 2/5 of original volume,save container space:




Main Components:


No.   Componentquantityunitmaterial specification Surface
1Top cover1pcSPCC cold rolled steel T1.2 Powder coated
2Fan unit1setSPCC cold rolled steel T1.2 Powder coated
3Steel Frame2pc SPCC cold rolled steel T1.2 Powder coated
4Tempered front door1pc SPCC cold rolled steel T1.2 Powder coated
5Mounting profile4pc SPCC cold rolled steel T1.5 Powder coated
6Mounting angle6pc SPCC cold rolled steel T2.0 Powder coated
7Side panel2pc SPCC cold rolled steel T1.2 Powder coated
8Steel rear door1pc SPCC cold rolled steel T1.2 Powder coated
9Little round lock for rear door1pc SPCC cold rolled steel T1.2 Galvanization
10handle lock for front door6pc --- Galvanization
11Castor4pc --- ---
12M10 adjustable feet4pc --- ---
13M6 B-head screw and M6 square nut20pc steel Color zinc coated
14Allen wrench1pc steel Black
15Bottom panel1pcSPCC cold rolled steel T1.2 Power coated
16Spacer(only for 800mm width)12pc SPCC cold rolled steel T1.2 Power coated
17Vertical cable manager (800mm width)2pc SPCC cold rolled steel T0.8 power coated



Optional Accessories:


Fixed Shelf ,keyboard tray, sliding shelf

Light kit; earthing kit

Brush for cable entry and other design

Plywood pallet or paper pallet;

Plinth

Cable Manager

Patch Panel

Network Cable


Customized sizes,styles and colors network cabinets orders are accepted.
