100 Pairs 110 Type Wire Blocks Without Legs
Details

100 pairs 110 Type Wire Blocks Without Legs

Wall-mount 110 wiring blocks create compact, adaptable 110 termination field for voice

and data by mounting 110 wiring bases to the wall or a backboard.


Features

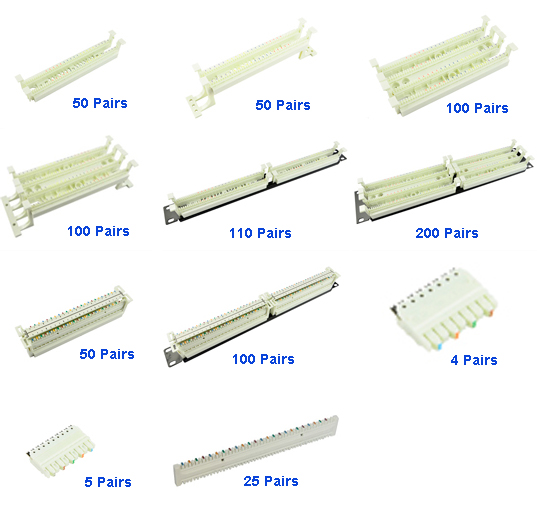

1. Blocks: 4-pair and 5-pair terminal blocks

2. Standard: Cat5E transmission speed

3. Transmission types: switch data/voice transmission type by jumper simply

4. Specification: general standard specs, fit various bands/standard multimedia case or rack

5. Cable fit: 22/24/26 AWG (0.4mm, 0.5mm, 0.6mm)

6. Material: solid engineering plastic (PC)

7. IDC specification: IDC contact material: phosphor bronze with gold/silver plating over nickel

8) Contact material: phosphor bronze with (3-50 MIC) gold plating over nickel


Specification

Product100 Pairs 110 Type Wire Blocks
Applicationsupport voice and high-speed data application
Availablewith/withoutlegs
Jack FitRJ-45 plugs (8 conductors)
Use onCat 5e transmission requirements of EIA/TIA 568A/B
Accommodate22-26 AWG
Insulation diameter0.4-0.6mm
IDC contract materialphosphor bronze with tin/silver/gold plating
MaterialABS/PC
ColorWhite


Electrical:

  1. VOLTAGE RATING: 125 VAC RMS

  2. CURRENT RATING: 1.5 AMP

  3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

  4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

  5. DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN

Mechanical:

  1. BASE MATERIAL: PC UL94V-0

  2. CABLE BINDER MATERIAL: PC UL94V-0

  3. IDC HOUSING AND PLATE: PC UL94V-0

  4. TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

  5. WIRE: AWG 24~26


25 50 100 Pairs 110 Voice Wiring Block
